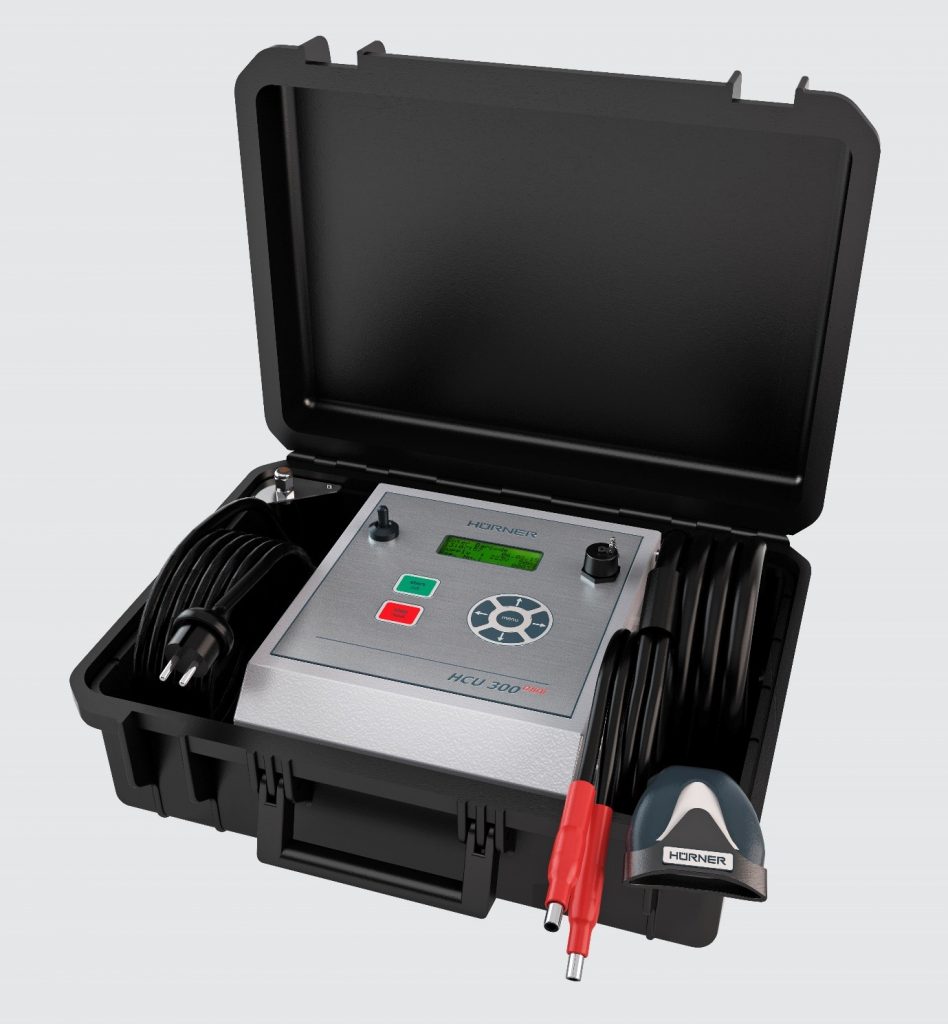

HCU 300 Mini
Purpose
All-purpose Welding Unit for jointing PE, PP, and PVDF fittings from 8 V to 48 V, for diameters up to 180 mm, incl. high-density plastic transport case.
Technical Specifications
Output Voltage: 8 V – 48 V
Output Current: max. 70 A
Input Voltage: 180 V – 280 V (230 V), 110 V/48 V optional
Input Frequency: 40 Hz – 70 Hz
Rated Power: AC 16 A
Temperature Range: -20°C – +60°C
Power Cord: 5 m with Euro plug
Welding Cable: 3 m with 4.7 mm connection terminals
Weight: 11.8 kg incl. transport case and welding cable
Dimensions: W 465 x H 175 x D 350 mm, inc. case

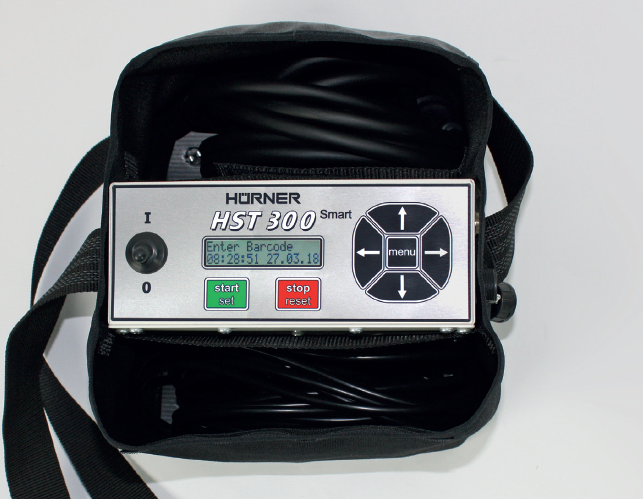

HST 300 Smart
Purpose
The HÜRNER HST 300 Smart is the most recent
member of the 300 line. The new model version,
too, makes a difference by its professional welding
control characteristics and data traceability management,
incl. PDF data transfer, for an operating range
inclusive of fittings of up to 160 mm of diameter.
Technical Specifications
Output voltage: 8 – 48 V
Output current max: 65 A
Input voltage: 180 V – 280 V (230 V)
Input frequency: 40 – 70 Hz
Rated input current: AC 8 A
Temperature range: –20 °C to +60 °C
Power cord: 5 m with Euro plug
Welding cable: 3.2 m with 4.0 mm connection terminals
Weight: 8.1 kg
Dimensions: W 210 x H 235 x D 225 mm

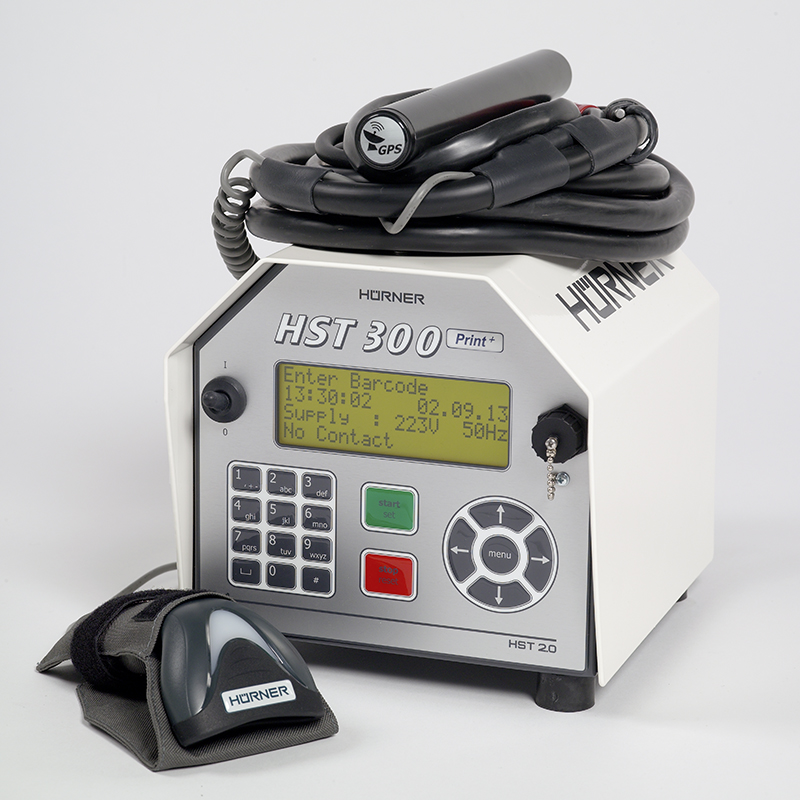

HST 300 Print+
Purpose
The HST 300 Print + Welding Unit is designed exclusively for welding plastic pipe fittings according to the electrofusion process.
It represents the next generation of
the tried and tested HST 300 series, featuring a broader
range of functions.
Technical Specifications
Output voltage: 8 – 48 V
Output current max: 110 A
Input voltage: 180 V – 280 V (230 V)
Input frequency: 50 – 60 Hz
Rated input current:
Temperature range: –20 °C to +60 °C
Power cord:
Welding cable:
Weight: 16 kg
Dimensions: W 236 x H 295 x D 330 mm

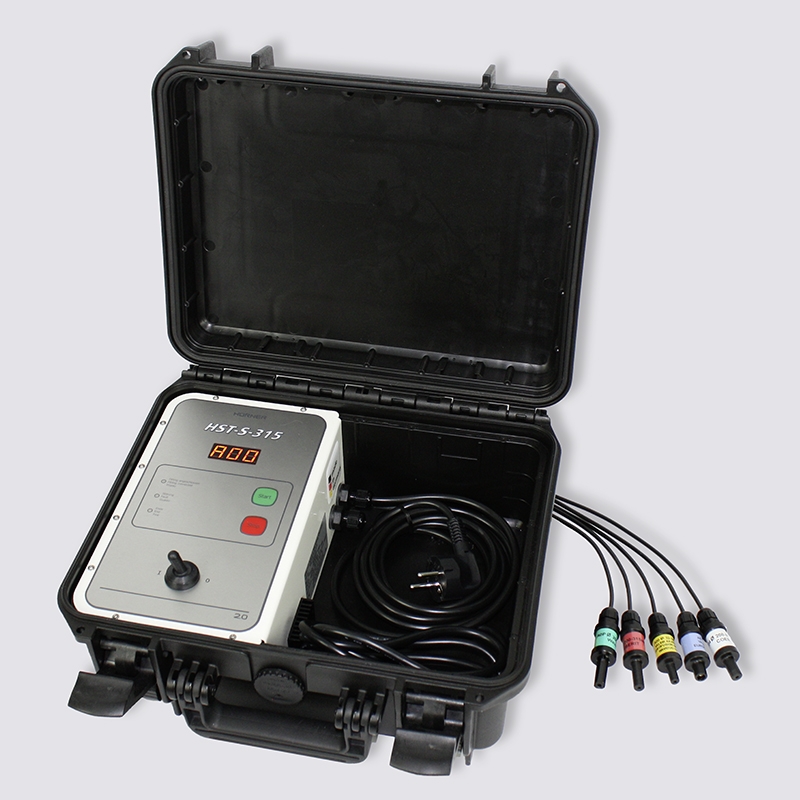

HST - S - 315 2.0
Purpose
HÜRNER’s all-purpose electrofusion welder
HST–S–315 2.0 offers easy, expertly and
convenient jointing with PE fittings sized
16 ‑ 315 mm in wastewater and roof draining
applications.
Technical Specifications
Output voltage: 230 V
Output current max: 11 A
Input voltage: 230 V, 40 – 70 Hz
Input frequency:
Rated input current:
Temperature range: –20 °C to +60 °C
Power cord: 3 m with Euro plug
Welding cable: 3 m for connection to welding adapters
Weight: 3.95 kg
Dimensions: W 355 x H 150 x D 295 mm

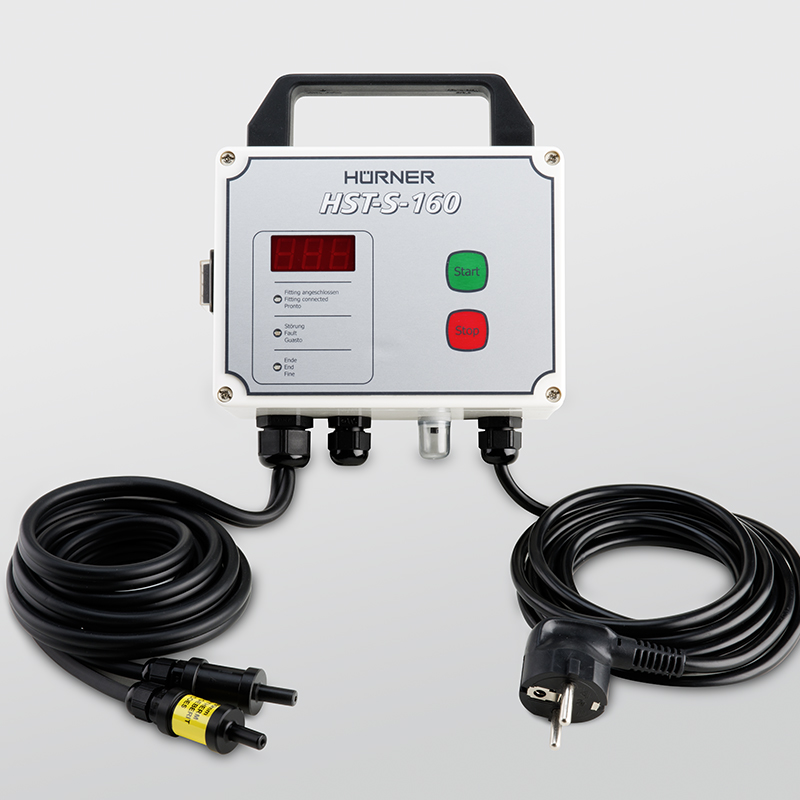

HST - S - 160
Purpose
HÜRNER’s all-purpose electrofusion welder
HST – S – 160 offers easy, convenient,
and expert welding of PE fittings sized
40 ‑ 160 mm in wastewater and roof
drainage applications.
Technical Specifications
Output voltage: 230 V
Output current max: 5 A
Input voltage: 230 V, 40 – 70 Hz
Input frequency:
Rated input current:
Temperature range: –20 °C to +60 °C
Power cord: 3 m with Euro plug
Welding cable: 3 m
Weight: 1.4 kg
Dimensions: W 165 x H 200 x D 85 mm | 6½ × 7⅞ × 3⅜
