Browse Our Butt Welding Collection Here

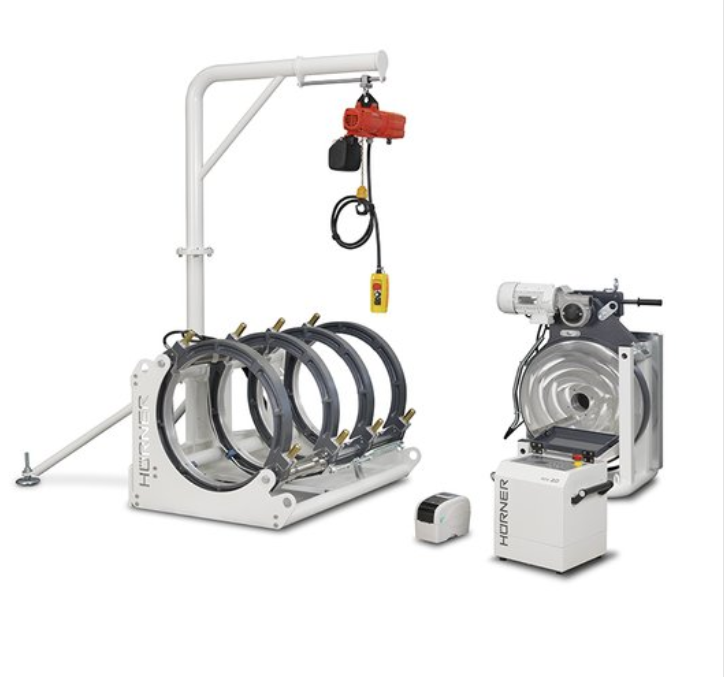

The CNC ECO 2.0 is a high-quality and durable, next-generation CN-controlled plastic pipe butt-welding machine that is applicable, with the machinery directive 2006/42/EC as well as the ISO standard 12176-1 and the DVS standard 2207-1.
Product Specifications:
The machine has 12 basic machine chassis models, pipes from O.D. 40 through 1600 mm can be jointed using the CNC ECO 2.0.

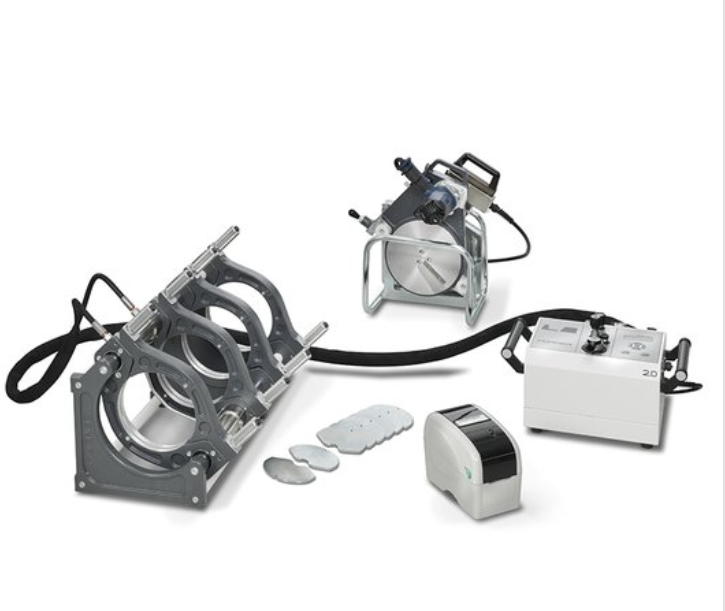

The WeldControl Line 2.0 offers a fully automated welding process with both Manual and WeldControl mode options. Data input can be done manually or through a scanner with a report logging capacity of up to 10,000 processes.
Product Specifications:
Has an Operating Range of 40-1600mm, the ability to data transfer to a computer or in PDF format and traceability according to ISO 12176.
The Manual Hydraulic Line 2.0 offers a manual welding process with temperature control integrated in hydraulic; 7-segment display. Heating element, basic machine and planer are connected to hydraulic.
Product Specifications:
Has an Operating Range of 40-1600mm, only one power supply, upgrade with report logging system SPG 2000 possible at any time.

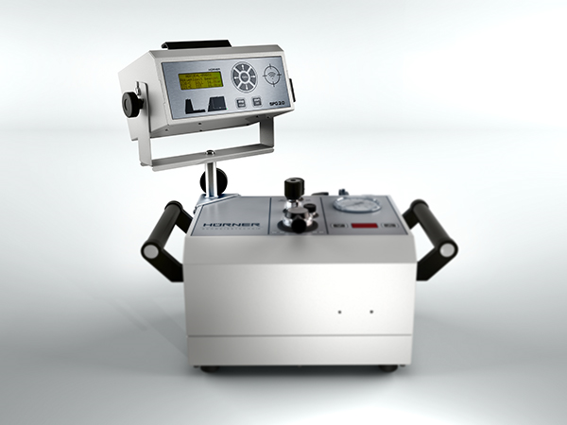

The Manual Hydraulic Line 2.0 + SPG2000 2.0 is extremely easy fitting onto existing Manual Hydraulic. It is also usable on other brands and has the capacity of report logging up to 10,000 processes.
Product Specifications:
Has an Operating Range of 40-1600mm, Supervision and report logging in accordance with ISO 12176 and the ability to transfer data to a computer or in PDF format.
